| Description: | Guide Ring | Material: | Synthetic Fibre-reinforced Polyester Composite With PTFE Micro-powder Additions |
|---|---|---|---|
| Advantages: | High Load, High Temperature | Color: | Brown |
| High Light: | fabric reinforced guide ring,phenolic resin guide ring,high load phenolic wear guide ring |
||

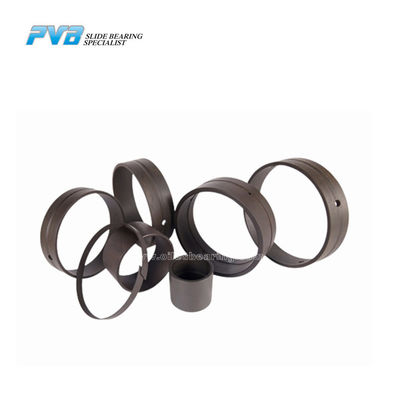

PFC-20 High Strength Fabric Reinforced Phenolic Resin Guide Ring
PFC-20 high strength fabrice resin guide ring is made of solute phenolic resin containing homogenously dispersed graphite and high-quality cotton fiber and finally finished with heat solidifying process under certain pressure and temperature. This material is featured in its high mechanical strength, excellent abrasion resistance and excellent temperature resistance, ability to sustain strong vibration under semi-static state, ability to sustain impact loads and slight torque loads. It can work under conditions where oil is little or even with no oil at all. It is applied to the production of bushings for the pillars of hydraulic machines as well as guiding sleeves for the vertical pillars of forging presses and spherical bearings.
Material
High-strength phenolic resin+Graphite+High quality cotton fiber
Advantages
Application
Technical Data
|
Specification |
Color |
Density 3(g/c㎡) |
Tensile strength |
Compressive strength |
Hardness |
Coefficient of friction |
Temperature |
||
|
(℃) |
|||||||||
|
|
|||||||||
|
Parallel to the laminated plane |
Vertical to the |
Dry |
Oil lubrication |
|
|||||
|
laminated plane |
|
||||||||
|
PFC-20 |
Black |
1.2-1.4 |
≥40 (MPa) |
≥160 |
≥220 |
90-100 |
0.15-0.3 |
0.1-0.12 |
-40 ～ +130 |
