FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing

FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing
FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing

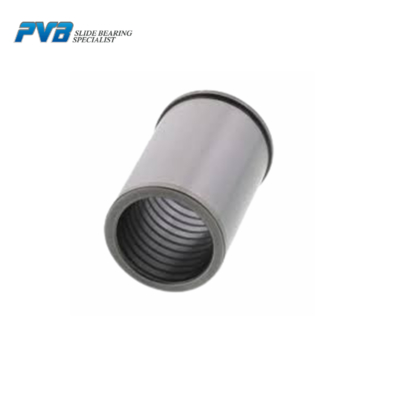

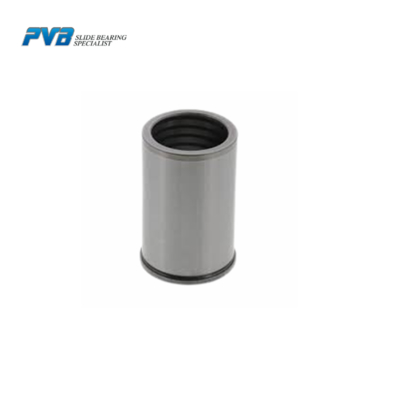

Large Image :  FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing

Product Details:
Place of Origin: China
Brand Name: PVB
Certification: ISO 9001;IATF 16949
Model Number: PSMZF
Contact Now

FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing

Description
Material: FC250+Graphite Type: Flange
Temperature Range(°C): -40～150 Feature: Self Lubricating

FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Sleeve Bearing



PSMZF steel graphite bushing is a type of flange oil freel bushing. It is made of FC250 steel with solid lubricant.





Material





FC250+ Special Solid Lubricant





Bushing Type





Straight, Flange







Technical Data





Metal Type   FC250
Max. Allowable Surface Pressure P(N/mm2)    5
Maximum Allowable Velocity(m/s)   0.15
Max. Allowable PV Value Range(N/mm2・m/s)   0.3~1.0
Max. Allowable PV Value(N/mm2•m/s)   0.5
Operating Temperature Range(°C)  -40～150





Standard Size





FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing 0



Recommended mating shaft tolerance: e7 or h7



Recommended housing I.D. tolerance: +0.02 to +0.05



Loctite (thread locking adhesive) is recommended to secure bushings.





Material: FC250+Graphite





FC250 Steel Graphite Plugged Oil Free Bushings PSMZF Steel Flange Bearing PSMZ Cylinder Bushing 1







Tag:

40Cr Hardened Steel Bushing,

62HRC Hardened Drill Bushes Bucket Bushing,

Steel Hardened Bushings 62HRC
