| Description: | Bronze Wrapped Bearing Bushing | Material: | CuZn31Si |
|---|---|---|---|
| Lubrication: | Oil Grease Lubricated | Standard: | DIN 1494 / ISO 3547 |
| Application: | Caliper Repari Kits,Brake Shoe | Avalability: | Cylindrical Bronze Bearing |
| High Light: | CuZn31Si Wrapped Bronze Bearing,CuZn31Si Rolled Wrapped Bushing,Wrapped Bronze Bearing Brake Shoes |
||

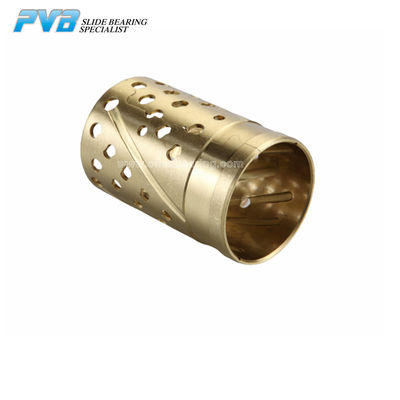

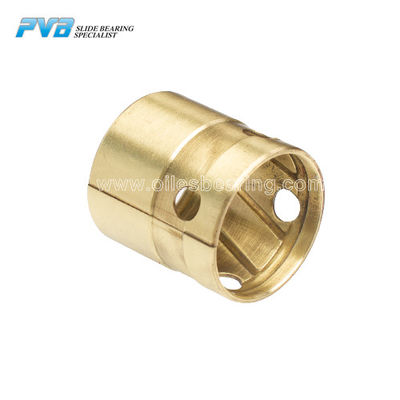

PVB091 CuZn31Si Wrapped Brake Shoes Rolled Bronze Bearing
PVB091 brake bronze bushing is made of specially formulated high-density bronze alloy with speical oil grooves and oil holes. This type of bronze rolled bearing also called brake bronze sleeve bearing bushing,bronze rolled bearing bushing,CuZn31Si Bronze Zinc alloy bearing.
Material Structure
CuZn31Si
Characteristics
Availability
Application
PVB091 bronze zinc alloy wrapped bearing is widely used in brake drum, caliper repairt kits and ect
Tolerance Details
Housing ØH7
Bushing inner-Ø after mountingH9
Shaft tolerancef7
Mounting Suggestion
Housing: Mounting bevel min. 1.5 mm x 15-45°
Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6
Shaft: Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
Stick-in: Adhesive should not contact the sliding surface
