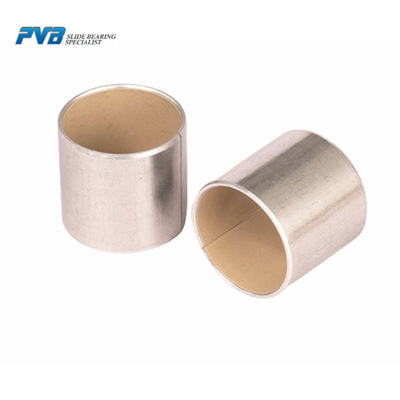

Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing

Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing
Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing

Large Image :  Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing

Product Details:
Place of Origin: China
Brand Name: PVB
Certification: ISO 9001;IATF 16949
Model Number: PEF-020

Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing

Description
Material: Steel+PHB Modified PTFE Surface Treatment: Tin Plating, Zin Plating

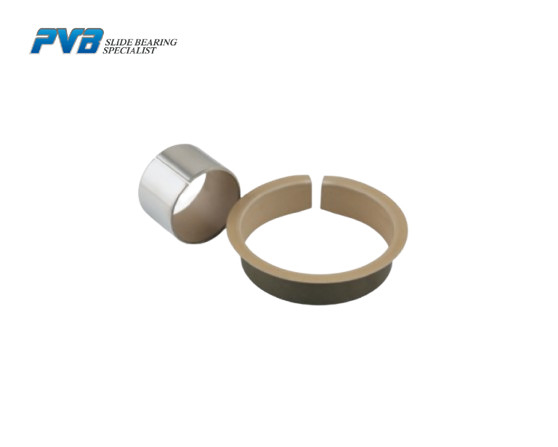

Avalability: Cylindrical, Flange, Thrust Washer Advantage: Corrosion Resistance
Performance: Long Service Life Characteristics: Maintenance Free, Long Life
Temperature Range: -200°C To +260°C Standard: DIN 1494 / ISO 3547
Highlight:

Boned PTFE Soft Strip Bushing Bearing

,

Modified PTFE Soft Strip Bushing

,

Modified PTFE Soft Strip Bearing

PEF-020 Steel back Boned Steel back Boned PHB Modified PTFE Soft Strip Bushing BearingBushing Bearing





PEF-020 bearing is a steel back Steel back Boned PHB Modified PTFE Soft Strip Bushing Bearing which marks the material as high temperature resistant. Therefore, this type bearing bushing is the appropriate material for Powertrain applications -- the boned structure is especially designed for high frequent oscillating movements as seen in most drivetrain dampeners.

Bearings of more than 0.75 mm thickness can be produced with an interference fit in the housing. Various methods are available to protect the steel shell from corrosion.



Material Structure




Steel Back Boned PHB Modified PTFE Soft Strip Bushing Bearing 0



Steel+ PHB Modified PTFE Soft Strip



Advantages


1.High dimensional accuracy
2.Light weight
3.Low friction factor
4.Good wear resistance
5.Long service life
6.Suits for working conditions of low load, medium speed and oilless lubrication



Application:


1.Bicycle front forks
2.Automobile clutches
